Pharmaceutical products often have strict temperature requirements, and even a brief temperature variation can compromise product quality. Klinge's Dual Refrigerated Container features two independent, full-capacity refrigeration systems that automatically switch to the backup unit if the primary system fails. This redundancy helps maintain continuous temperature control and provides an extra layer of protection for critical pharmaceutical and life sciences cargo.

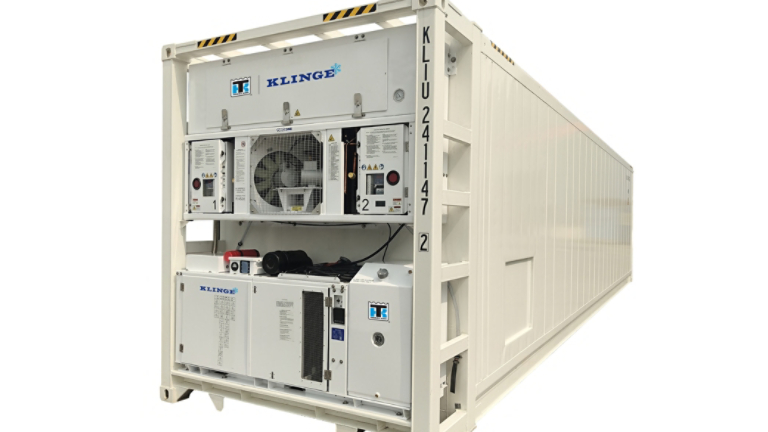

NMR-262 Nose-Mount Dual Redundant Refrigeration Unit
Maintain the pharma cold chain, chemical integrity, and quality
Designed for the rigors of intermodal transport in harsh conditions, but perfect for quick onsite storage too.
- Designed to transport temperature-sensitive pharmaceuticals, biologics, hazardous chemicals, resins and adhesives
- Full capacity reefer unit
- Automatically switches to backup refrigeration if the primary system fails
- Transports pharmaceuticals and chemicals at temperatures between -25°C and 0°C (-13°F to 32°F)
- Integrated, self-powered generator set provides power during transit or loss of external power supply
- On-board spare parts for quick repair during transport
Reliable Refrigeration Redundancy
Full-capacity reefer offers total redundancy with instant, automated backup. Each container has two separate refrigeration systems with independent thermostats and control circuits. Systems maintain constant communication, enabling instant and automated backup activation. The refrigeration unit is CE-marked.
Built-In Cargo Safety Features
Gain peace of mind with built-in high temperature alarming. High-efficiency evaporator and condenser coils have pressure regulations that allows the unit to always run optimally. Cargo area has ATEX-rated evaporator motors (T4) for increased protection, quality, and optional heating capacity.
Secure Modern Controls
Control panel is pin-enabled, while the control box is padlock-enabled — preventing unauthorized tampering. Monitors for increased capacity, performance, and failure detection/alarm codes.
Benefits
Fully Qualified for Maritime Shipping
Meets ISO standards for ocean shipping containers, as well as standards set out in the International Maritime Dangerous Goods Code (IMDG Code), a collection of regulations allowing hazardous materials to be transported internationally using maritime practices.

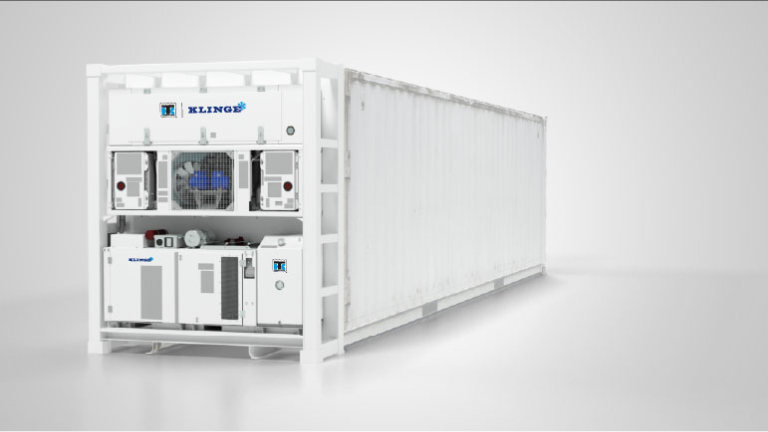

Integrated Container Gen-Set Provides Always-Available Power
An optional Klinge diesel generator set, Model NMG-118-T4, powers the refrigeration units during truck transportation or when the external power supply is lost. Adding an independent power source brings cargo protection to the next level.
Specifications for Dual Redundant Refrigeration Unit (Model NMR-262) and 20 –foot Container
Feature | Specification |
Dimensions (External) | W 2438 mm (8-ft), L 6058 mm (20-ft), H 2591 mm (8.5-ft) |
Dimensions (Internal) | W 2280 mm, L 5053 mm, H 2259 mm |
Door Opening Dimensions | W 2290 mm, H 2264 mm |
Internal Capacity | 26.0 m3 (918.2 ft3) |
Power requirements | 460 Volt A/C +/- 10% 3 Phase 60Hz +/- 2.5%, 380 Volt A/C +/- 10% 3 Phase 50Hz +/- 2.5% |
Compressors (qty 2) | Bitzer using R-452A Refrigerant |
Net Cooling Capacity (1 of 2 systems) at 37.7°C (100°F) ambient and –17.8°C (0°F) Return Air Temperature | 4890 Kcal/h / 19,500 BTU/hr |
Specifications for Dual Redundant Refrigeration Unit (Model NMR-262) and 40 –foot Container
Feature | Specification |
Dimensions (External) | W 2438 mm (8-foot), L 12,192 mm (40-foot), H 2896 mm (9.5-foot) |
Dimensions (Internal) | W 2280 mm, L 11187 mm, H 2544 mm |
Door Opening Dimensions | W 2290, H 2569 mm |
Internal Capacity | 65.0 m3 (2295 ft3) |
Weight (including refrigeration unit and generator) | 5,950kg (13,120 lbs.) |
Power requirements | 460 Volt A/C +/- 10% 3 Phase 60Hz +/- 2.5%, 380 Volt A/C +/- 10% 3 Phase 50Hz +/- 2.5% |
Compressors (qty 2) | Bitzer using R-452A Refrigerant |
Net Cooling Capacity (1 of 2 systems) at 37.7°C (100°F) ambient and –17.8°C (0°F) Return Air Temperature | 4890 Kcal/h / 19,500 BTU/hr |
Specification for Generator Set (Model NMG-118-T4)
Feature | Specification |
Ambient Temperatures | -30°C (-22°F) to 50°C (122°F) |
Dimensions | W 2121 mm (83.5 in), L 626 mm (24.7 in), H 996 mm (39.2 in) |
Construction | Stainless steel hardware and frame made of seawater-resistant aluminum |
Engine Type | Isuzu diesel 4-cylinder liquid cooled with glow plug assisted start |
Fuel Tank | 170L (45 US gallons) fuel tank for approximately 1.5 days (36 hours) of operation under full load |
Request Service
Need Service or Repair Work?
Please complete the service request form to begin your service or repair process.
Resources
Cargo Loading Instructions
Product Manuals
FAQs
Frequently Asked Questions about Nose-Mount Dual Redundant Refrigeration Unit
The NMR-262 is ideal for transporting temperature-sensitive pharmaceutical products that require storage between 0°C (32°F) and -25°C (-13°F). It is commonly used for biologics, vaccines, active pharmaceutical ingredients (APIs), clinical trial materials, specialty medicines, laboratory reagents and other high-value medical products that require reliable cold chain protection.
The Dual Refrigerated Container includes multiple features designed to support valuable pharmaceutical shipments. Standard features include automatic backup refrigeration activation, high-temperature alarms, PIN-protected controls, secure lockable control boxes, built-in performance monitoring and automatic balancing of refrigeration unit runtime. Optional satellite and GSM communication systems enable remote monitoring of cargo temperature, GPS location, alarm notifications and power status, providing greater visibility throughout the supply chain.
Many specialty chemicals, resins, adhesives and hazardous materials must remain within a specific temperature range throughout transport. A refrigeration failure can lead to product degradation, safety risks, regulatory concerns, and costly shipment losses. The NMR-262 refrigerated container systems provide two independent, full-capacity refrigeration systems. If the primary unit experiences a fault, the secondary unit automatically takes over without manual intervention, helping maintain cargo temperature and protect valuable chemical shipments.
The optional integral generator set (Model NMG-118-T4) provides independent power whenever shore power or external electricity is unavailable. This allows the refrigeration systems to continue operating during truck transport, port transfers, or unexpected power outages. With up to 36 hours of operation under full load, the generator helps maintain temperature protection until external power is restored.
Yes. The NMR-262 is specifically designed for transporting dangerous and temperature-sensitive cargo. Features supporting chemical applications include:
- Compliance with international regulations for transporting dangerous goods
- Zone 1-rated evaporator motors (T4)
- Independent thermostats and control circuits for each refrigeration system
- High-temperature alarms with optional independent temperature alarms through Klinge or 3rd party telematics
These features help support the transport of hazardous chemicals while maintaining required storage temperatures between 0°C and -25°C.
Yes. The NMR-262 refrigerated container system offers a remote monitoring option to improve shipment visibility via GSM and satellite communication. These capabilities allow logistics teams to monitor refrigerated chemical shipments in real time and respond quickly if operating conditions change.
