The TCR-110 is engineered for ISO tank containers carrying temperature-sensitive chemicals and other liquid cargo that require precise temperature control during transport.
TCR-110 Refrigeration Unit for Tank Containers

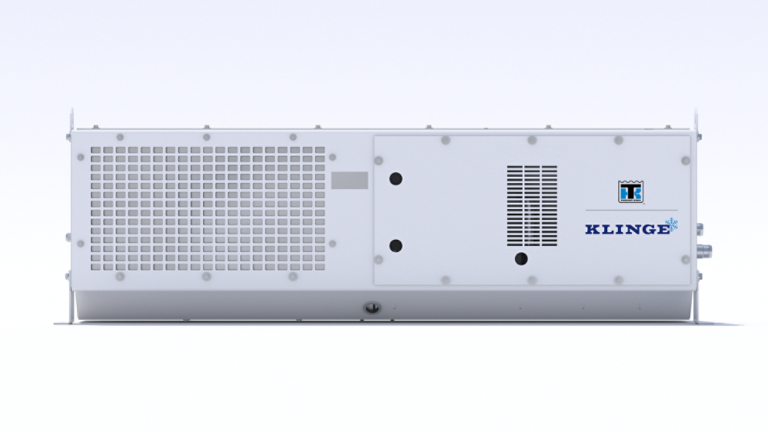

TCR-110 and 110-Z2
Higher capacity temperature control for sensitive liquid cargo
Building on the proven performance of TCR-109, TCR-110 offers increased cooling capacity plus an explosion-proof version that is ATEX rated.
- 7.0 kW refrigeration capacity (0°C Cargo / 30°C ambient)
- Optional 12 kW heating module
- R-452A refrigerant
- Designed to ISO 1496-2 + CE
- Dual redundant option available
Higher Cooling Capacity
With approximately 7 kW cooling capacity, the TCR-110 maintains precise temperatures to protect a wider range of chemicals and other temperature-sensitive fluids. An optional dual-redundant configuration provides an additional layer of protection.
ATEX Configuration for Hazardous Cargo

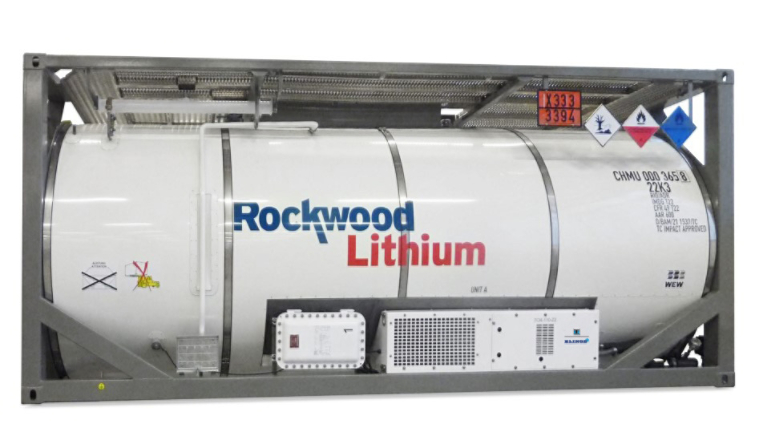

TCR-110-Z2 provides an option that is specifically designed and thoroughly tested for the shipment of hazardous flammable cargo. Meets IMDG requirements under Clause 7.3.7.6 for transport of certain flammable liquids. Certified by an independent third party (European Notifying Body).
Compact, Serviceable Control System (Non-ATEX)
Compact control boxes feature advanced technology while taking up less space on the tank container. End-mounting makes it simplified for technicians to quickly inspect and service key electrical components, even when containers are stacked.
Benefits
Protect Temperature-Sensitive Cargo
Reliable cooling performance, optional redundant refrigeration, and available heating capability help maintain product integrity throughout transport, limiting the risk of temperature excursions and costly cargo loss.
Improve Operational Efficiency
Made of lightweight, sea-water resistant aluminum, the TCR-111 helps optimize cargo loading capabilities. Plus, the easy- access chiller section door can help saves time during maintenance and repair.
Unit Specs (TCR-110)
Feature | Specification |
Cargo and Cooling Liquid Temperature Range | -31°C (-23°F) to 60°C (140°F) when equipped with a heater module |
Ambient Temperature Range | -30°C (-22°F) to 50°C (122°F) |
Safe Component Storage | 70°C (158°F) |
Unit Weight | 160 kg (353 lbs.) |
Control Box Weight | 24.1 kg (53 lbs.) |
Unit Specs (TCR-110-Z2)
Feature | Specification |
Cargo and Cooling Liquid Temperature Range | -31°C (-23°F) to 50°C (140°F) when equipped with a heater module |
Ambient Temperature Range | -20°C (-4°F) to 45°C (113°F) |
Safe Component Storage Range | 70°C (158°F) |
Unit Weight | 175 kg (386 lbs.) |
Control Box Weight | 102.5 kg (226 lbs.) |
Request Service
Need Service or Repair Work?
Please complete the service request form to begin your service or repair process.
Resources
Product Manuals
FAQs
Frequently Asked Questions about TCR-110 Refrigeration Unit for Tank Containers
Yes. An optional 12 kW heater module allows the system to provide both heating and cooling, making it suitable for products that require temperature maintenance across a wide operating range.
Yes. The TCR-110 can be configured as a dual-redundant system with two complete refrigeration units installed on a single tank container. The second unit serves as a backup to provide additional cargo protection if needed.
TCR-110 is available in an ATEX-certified configuration — TCR-110-Z2. Designed for operation in hazardous environments, these units provide quality, dependable temperature control for sensitive cargo while helping fleets meet regulatory requirements.
