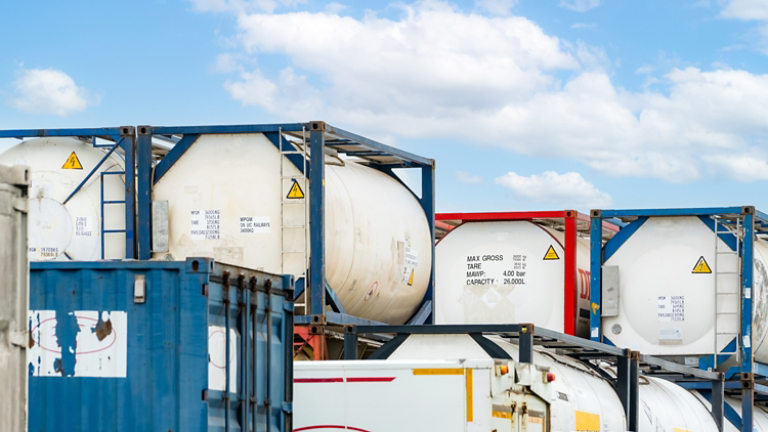

Refrigeration units for tank containers are widely used by companies transporting temperature-sensitive liquid products, including the chemical, electronic, food, and beverage industries.

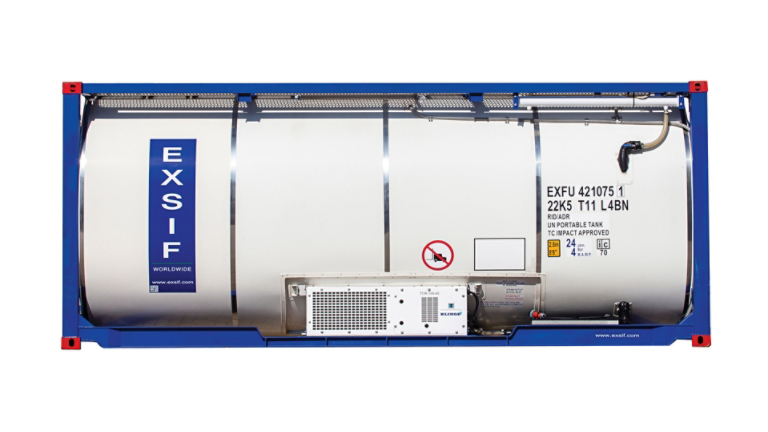

TCR-109 Refrigeration Unit for Tank Containers
Precise temperature control for sensitive liquid cargo
Engineered to protect product quality, meet regulatory requirements, and reduce risk in harsh environments across global supply chains.
- Over 30 years of proven performance
- 4.9 kW refrigeration capacity (0°C cargo / 30°C ambient)
- Optional 12 kW heating module
- R-452A refrigerant
- Designed to ISO 1496-2 requirements
- Dual Redundant version available
Copeland® Scroll Compressor
Provides excellent cooling capacity and energy-efficient performance. Copeland Scroll Compressors deliver dependable temperature management for transporting chemicals, pharmaceuticals, food products, and beverages.
Advanced MicroProcessor Controller (MPC)
Our intuitive MicroProcessor Controller offers flexible operation, accurate temperature management, and simplified monitoring. End-mounted controllers provide convenient access to stacked containers.
Consistent Temperature Management
The TCR-109 regulates product temperature by circulating glycol or synthetic heat transfer fluid through external cooling coils surrounding the tank. This indirect cooling and heating method provides uniform temperature control.
Optional 12 kW Heater Module
The TCR-109 can be fitted with an optional 12 kW heater, allowing high-power heating when needed in colder environments or for products required to be transported at higher temperatures (up to 60°C).
Benefits
Reliable Refrigerated Tank Performance for Critical Cargo
The proven TCR-109 is suitable for modern cargo, including lithium electrolytes for batteries, chemicals for semiconductors, and other hazardous and bulk liquids. This solution maintains compliance with International Customs Regulations for Containers, relevant ISO recommendations and the rules of B.V., ABS, and Lloyds.
Practical, Low-Maintenance Design Derves Demanding Applications
Units are compact, lightweight, and fit neatly alongside the ISO tank container. Maintenance-friendly design provides easy access to common service points even when tanks are stacked for faster maintenance and limited downtime. Easy to mount or remove from the tank container.
Unit Specs
Feature | Specification |
Cargo and cooling liquid temperature range | -31°C (-23°F) to 60°C (140°F) when equipped with a heater module |
Ambient temperature range | -30°C (-22°F) to 50°C (122°F) |
Safe component storage | 70°C (158°F) |
Unit Weight | 129 kg (284 lbs.) |
Control Box Weight | 24.5 kg (54 lbs.) |
Options: Frame or beam tank mounting, horn for audible alarm notification, 12 kW heater, dual system for redundancy purposes, GSM and satellite communication, dual voltage transformer low temperature
Request Service
Need Service or Repair Work?
Please complete the service request form to begin your service or repair process.
Resources
Product Manuals
PTI Form
FAQs
Frequently Asked Questions of TCR-109 Refrigeration Unit for Tank Containers
Yes, the TCR-109 and other Klinge products are supported through a vast global service network. International support helps shippers limit downtime with access to technical expertise, maintenance assistance and replacement parts wherever their refrigerated tank containers operate.
Yes. The TCR-109 offers a range of options to meet different operational needs, including dual refrigeration systems for redundancy, GSM and satellite communications, and heater modules for cargo that requires both heating and cooling. These configurable features allow the unit to be tailored to specific requirements, including cargo type, routes, and regulatory requirements.
